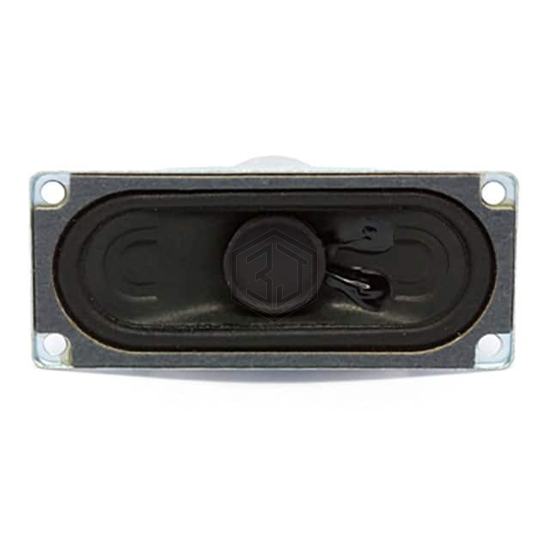

SC700308-1 - DB Unlimited - Speakers

SC700308-1

DB Unlimited

HIGH TEMP DYNAMIC SPEAKER

SC700308-1 is a Speakers manufactured by DB Unlimited. HIGH TEMP DYNAMIC SPEAKER. Key specifications: size / dimension 2.756" L x 1.201" W (70.00mm x 30.50mm), termination Solder Eyelet(s), power - max 5 W, frequency range 200 Hz ~ 20 kHz.

In Stock: 744

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range200 Hz ~ 20 kHz
Frequency - Self Resonant300Hz
Impedance8 Ohms
Efficiency - dBA100.00
Efficiency - Testing100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated2 W
Power - Max5 W
Port LocationTop
ShapeRectangular
Material - ConeCloth
Material - Magnet-
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension2.756" L x 1.201" W (70.00mm x 30.50mm)
Height - Seated (Max)0.906" (23.00mm)

Frequently Asked Questions

SC700308-1 is a Speakers manufactured by DB Unlimited. HIGH TEMP DYNAMIC SPEAKER

The size of SC700308-1 is 2.756" L x 1.201" W (70.00mm x 30.50mm).

The termination type of SC700308-1 is Solder Eyelet(s).

The power rating of SC700308-1 is 5 W.

The resistance of SC700308-1 is 8 Ohms.
