CF24 SERIES 0.50MM(.020") LIF TO

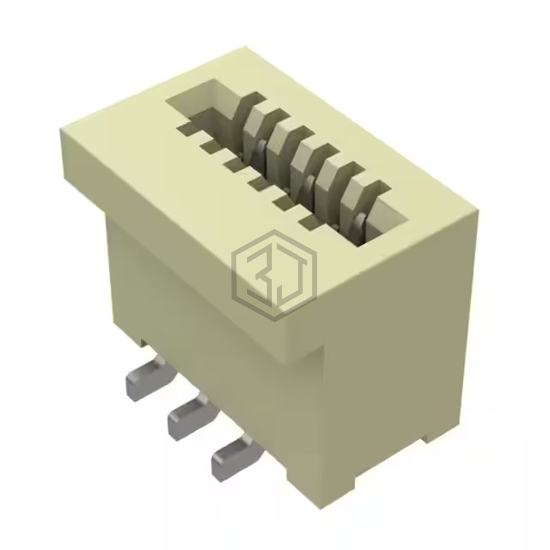

CF24062V0R0-NH is a FFC, FPC (Flat Flexible) Connectors manufactured by Cvilux USA. CF24 SERIES 0.50MM(.020") LIF TO. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 50V, housing material Polyamide (PA6T), Nylon 6T, Halogen Free.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 6 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.165" (4.20mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA6T), Nylon 6T, Halogen Free |
| Actuator Material | Polyamide (PA6T), Nylon 6T, Halogen Free |
| Features | Low Insertion Force (LIF), Pick and Place Cap |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for CF24062V0R0-NH and get a quote within 24 hours.
