CF20 SERIES 0.50MM(.020") ZIF SI

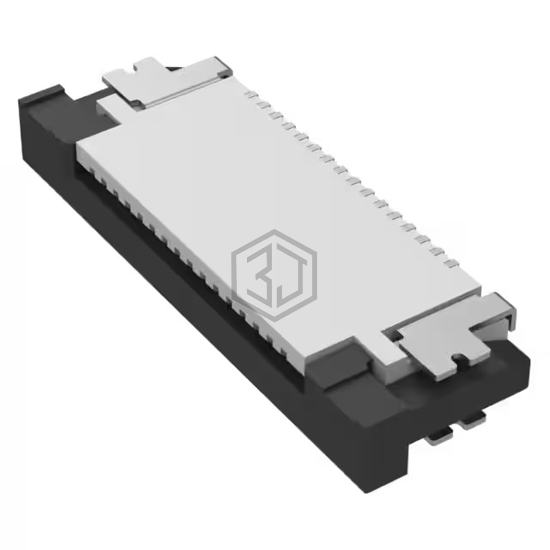

CF20161U0R0-NH is a FFC, FPC (Flat Flexible) Connectors manufactured by Cvilux USA. CF20 SERIES 0.50MM(.020") ZIF SI. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 50V, housing material Thermoplastic, Halogen Free.
In Stock: 1,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 16 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | - |
| Contact Finish | Tin |
| Housing Material | Thermoplastic, Halogen Free |
| Actuator Material | Thermoplastic, Halogen Free |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for CF20161U0R0-NH and get a quote within 24 hours.
