CF16 SERIES 1.00MM(.039") LIF TO

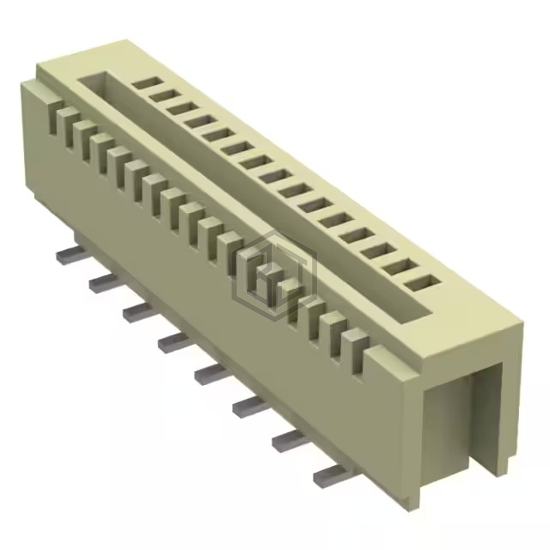

CF16151M0R0-NH is a FFC, FPC (Flat Flexible) Connectors manufactured by Cvilux USA. CF16 SERIES 1.00MM(.039") LIF TO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 100V, housing material Thermoplastic, Halogen Free.
In Stock: 2,385
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 15 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Height Above Board | 0.205" (5.20mm) |
| Locking Feature | - |
| Cable End Type | Straight, Tapered |
| Contact Material | - |
| Contact Finish | Tin |
| Housing Material | Thermoplastic, Halogen Free |
| Actuator Material | - |
| Features | Low Insertion Force (LIF), Pick and Place Cap |
| Voltage Rating | 100V |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
