STEPPER MOTOR W/ INCREMENTAL ENC

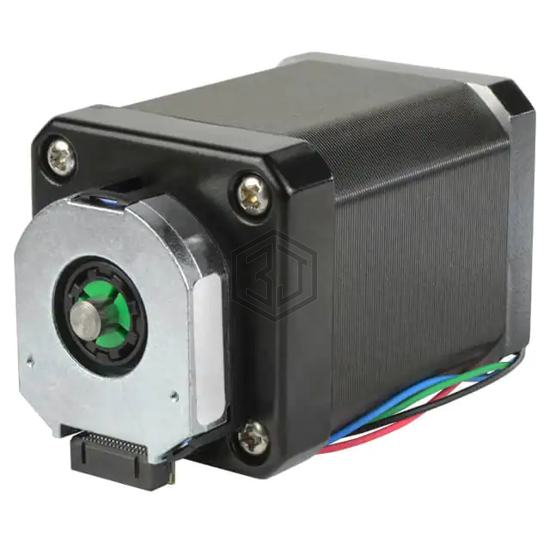

NEMA17-13-04SD-AMT112S is a Stepper Motors manufactured by CUI Devices. STEPPER MOTOR W/ INCREMENTAL ENC. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24 ~ 48VDC, current rating (amps) 670 mA, size / dimension Square - 1.669" x 1.669" (42.40mm x 42.40mm).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24 ~ 48VDC |
| Current Rating (Amps) | 670 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±0.2% |
| Torque - Holding (oz-in / mNm) | 42 / 296.59 |
| Size / Dimension | Square - 1.669" x 1.669" (42.40mm x 42.40mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 9.9 Ohms |
| Features | Integrated Encoder, Flatted Shaft |
Submit your RFQ for NEMA17-13-04SD-AMT112S and get a quote within 24 hours.
