STEPPER MOTOR W/ INCREMENTAL ENC

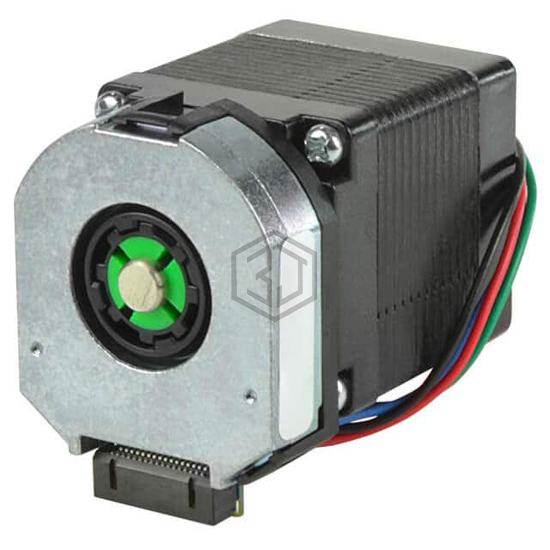

NEMA11-18-01D-AMT112S is a Stepper Motors manufactured by CUI Devices. STEPPER MOTOR W/ INCREMENTAL ENC. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24 ~ 48VDC, current rating (amps) 670 mA, size / dimension Square - 1.110" x 1.110" (28.20mm x 28.20mm).
In Stock: 9,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24 ~ 48VDC |
| Current Rating (Amps) | 670 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±0.2% |
| Torque - Holding (oz-in / mNm) | 13.7 / 96.74 |
| Size / Dimension | Square - 1.110" x 1.110" (28.20mm x 28.20mm) |
| NEMA Frame Size | 11 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.791" (20.10mm) |
| Mounting Hole Spacing | 0.909" (23.10mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 7.1 Ohms |
| Features | Integrated Encoder |
Submit your RFQ for NEMA11-18-01D-AMT112S and get a quote within 24 hours.
