STEPPER MOTOR W/ INCREMENTAL ENC

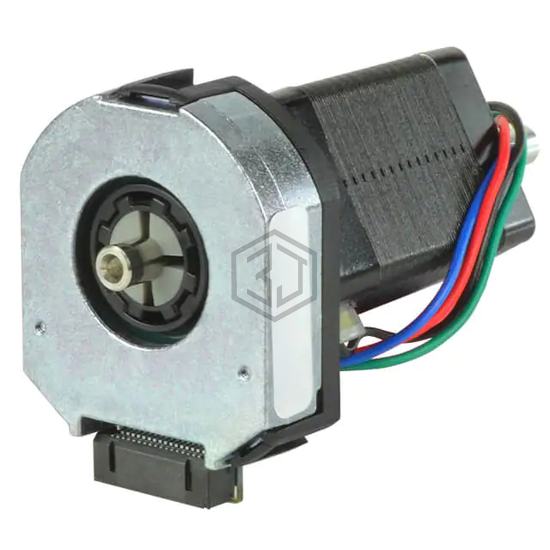

NEMA08-13-01D-AMT112S is a Stepper Motors manufactured by CUI Devices. STEPPER MOTOR W/ INCREMENTAL ENC. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24 ~ 48VDC, current rating (amps) 600 mA, size / dimension Square - 0.799" x 0.799" (20.30mm x 20.30mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24 ~ 48VDC |
| Current Rating (Amps) | 600 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±0.2% |
| Torque - Holding (oz-in / mNm) | 3 / 21.19 |
| Size / Dimension | Square - 0.799" x 0.799" (20.30mm x 20.30mm) |
| NEMA Frame Size | 8 |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | 0.630" (16.00mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 6.5 Ohms |
| Features | Integrated Encoder |
Submit your RFQ for NEMA08-13-01D-AMT112S and get a quote within 24 hours.
