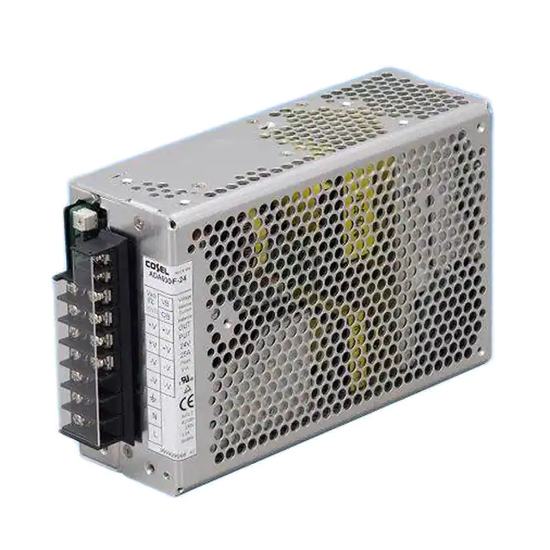

AC/DC CONVERTER 48V 336W
ADA600F-48-CN1 is a Industrial, DIN Rail Power Supplies manufactured by Cosel USA, Inc.. AC/DC CONVERTER 48V 336W. Key specifications: operating temperature -10°C ~ 71°C (With Derating), current - output (max) 7A, size / dimension 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm), number of outputs 1.
In Stock: 2,651
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 7A |
| Power (Watts) | 336W (600W Forced Air) |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -10°C ~ 71°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) |
| Approval Agency | CE, CSA, cURus, TUV, UL |
| Standard Number | 60950-1; 62368-1 |
