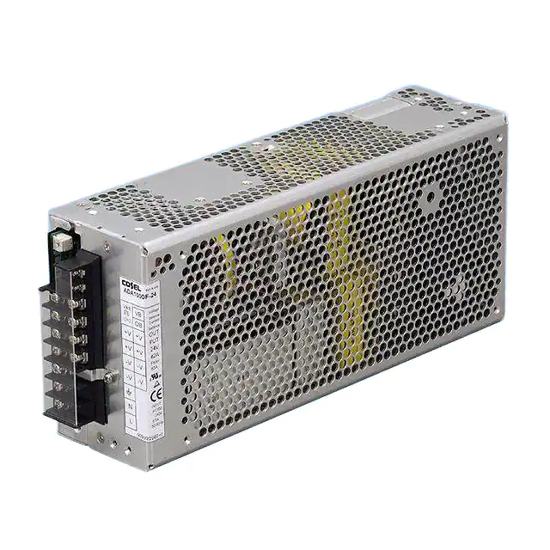

AC/DC CONVERTER 36V 594W
ADA1000F-36-N1W is a Industrial, DIN Rail Power Supplies manufactured by Cosel USA, Inc.. AC/DC CONVERTER 36V 594W. Key specifications: operating temperature -10°C ~ 71°C (With Derating), current - output (max) 16.5A, size / dimension 11.02" L x 5.00" W x 2.95" H (280.0mm x 127.0mm x 75.0mm), number of outputs 1.
In Stock: 7,644
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 16.5A |
| Power (Watts) | 594W (1008W Forced Air) |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -10°C ~ 71°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC, Universal Input |
| Size / Dimension | 11.02" L x 5.00" W x 2.95" H (280.0mm x 127.0mm x 75.0mm) |
| Approval Agency | CE, CSA, cURus, TUV, UL |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for ADA1000F-36-N1W and get a quote within 24 hours.
