Cornell Dubilier Electronics (CDE)

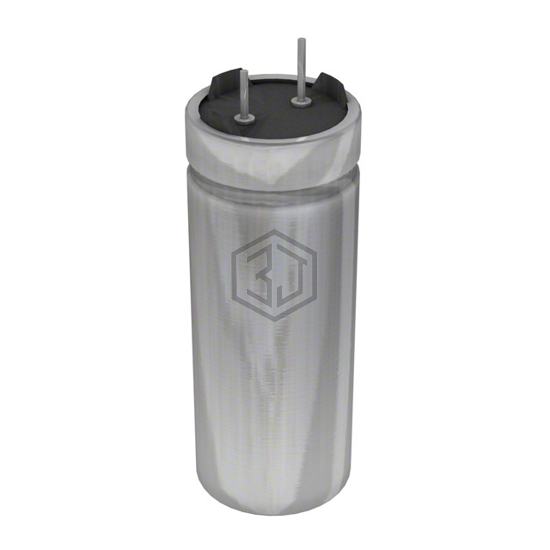

CAP ALUM 3900UF 25V RADIAL
VPR392U025N2L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3900UF 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,534
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 18mOhm @ 10kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.191 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.402" (10.20mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 2.626" (66.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1E392 | Panasonic Electronic Components | CAP ALUM 3900UF 20% 25V RADIAL | 88% | View |
| MAL214636392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 80% | View |
| B41858C7398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 35V RADIAL | 77% | View |
| MAL213665392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 71% | View |
| UPA1C392MHD | Nichicon | CAP ALUM 3900UF 20% 16V RADIAL | 63% | View |
| EEU-FC1C392S | Panasonic Electronic Components | CAP ALUM 3900UF 20% 16V RADIAL | 58% | View |
Submit your RFQ for VPR392U025N2L and get a quote within 24 hours.
