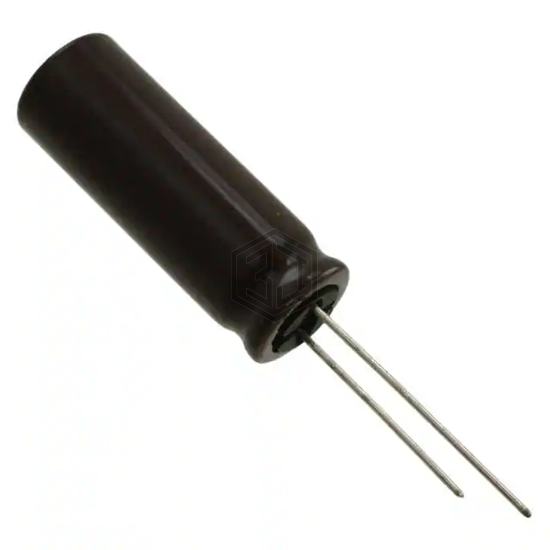

CAP ALUM 3900UF 20% 16V RADIAL
UPA1C392MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,342
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.499 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.94 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY250ELL392ML40S | United Chemi-Con | CAP ALUM 3900UF 20% 25V RADIAL | 84% | View |
| MAL213665392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 82% | View |
| EEU-FC1E392 | Panasonic Electronic Components | CAP ALUM 3900UF 20% 25V RADIAL | 80% | View |
| MAL214636392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 76% | View |
| B41888C3398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 10V RADIAL | 72% | View |
| ELXV100ELL392MK40S | United Chemi-Con | CAP ALUM 3900UF 20% 10V RADIAL | 71% | View |
Submit your RFQ for UPA1C392MHD and get a quote within 24 hours.
