Cornell Dubilier Electronics (CDE)

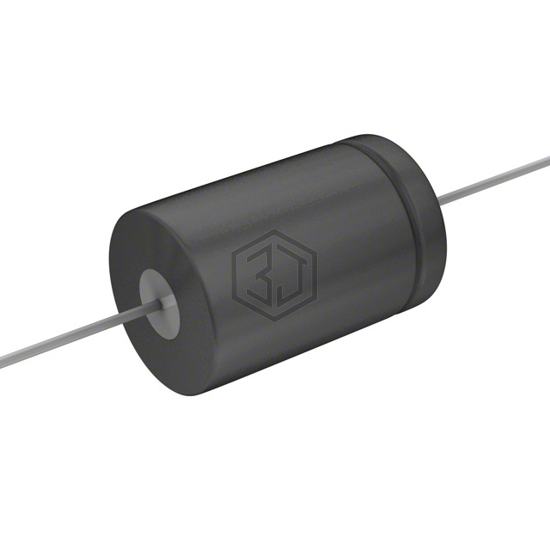

CAP ALUM 12UF 350V AXIAL
TC63 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 12UF 350V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Axial, Can.
In Stock: 3,508
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 12.71Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 239 mA @ 120 Hz |
| Ripple Current @ High Frequency | 298.75 mA @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.750" Dia x 1.125" L (19.05mm x 28.58mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TC63 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 30D126M400EH2A | Vishay Sprague | CAP ALUM 12UF 20% 400V AXIAL | 91% | View |
| UCY2V120MPD | Nichicon | CAP ALUM 12UF 20% 350V RADIAL | 89% | View |
| UCYW6120MPD1TD | Nichicon | CAP ALUM 12UF 20% 420V RADIAL | 83% | View |
| UCY2W120MPD1TD | Nichicon | CAP ALUM 12UF 20% 450V RADIAL | 81% | View |
| 500D126M250DF2A | Vishay Sprague | CAP ALUM 12UF 20% 250V AXIAL | 78% | View |
| 600D126F250DJ4 | Vishay Sprague | CAP ALUM 12UF 250V AXIAL | 78% | View |
Submit your RFQ for TC63 and get a quote within 24 hours.
