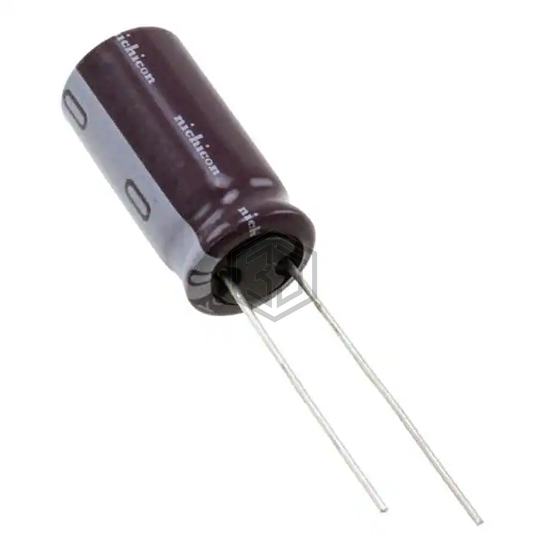

CAP ALUM 12UF 20% 420V RADIAL
UCYW6120MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 464
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2W120MPD1TD | Nichicon | CAP ALUM 12UF 20% 450V RADIAL | 98% | View |
| 450QXW12MEFR8X25 | Rubycon | CAP ALUM 12UF 20% 450V RADIAL | 91% | View |
| UVC2G120MPD1TA | Nichicon | CAP ALUM 12UF 20% 400V RADIAL | 81% | View |
| 600D126F250DJ4 | Vishay Sprague | CAP ALUM 12UF 250V AXIAL | 67% | View |
| 80ZLJ12M5X11 | Rubycon | CAP ALUM 12UF 20% 80V RADIAL | 56% | View |
| 160YXF12KEFC10X12.5 | Rubycon | CAP ALUM 12UF 10% 160V RADIAL | 56% | View |
Submit your RFQ for UCYW6120MPD1TD and get a quote within 24 hours.
