Cornell Dubilier Electronics (CDE)
CAP ALUM 33000UF 20% 16V SNAP

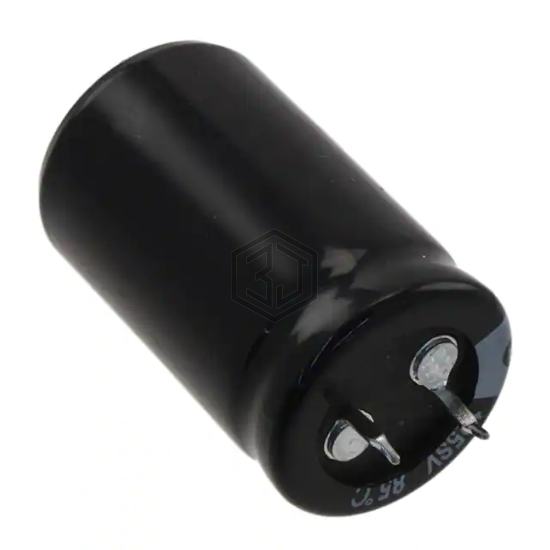

SLPX333M016C9P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 33000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 1,790
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 20mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.86 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216245333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 16V SNAP | 97% | View |
| MALIEYH07CA533D42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 16V SNAP | 95% | View |
| LKG1C333MESCBK | Nichicon | CAP ALUM 33000UF 20% 16V SNAP | 94% | View |
| LGU1C333MELB | Nichicon | CAP ALUM 33000UF 20% 16V SNAP | 86% | View |
| MAL205676333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 25V SNAP | 78% | View |
| EKMH100VSN333MR35U | United Chemi-Con | CAP ALUM 33000UF 20% 10V SNAP | 58% | View |
Submit your RFQ for SLPX333M016C9P3 and get a quote within 24 hours.
