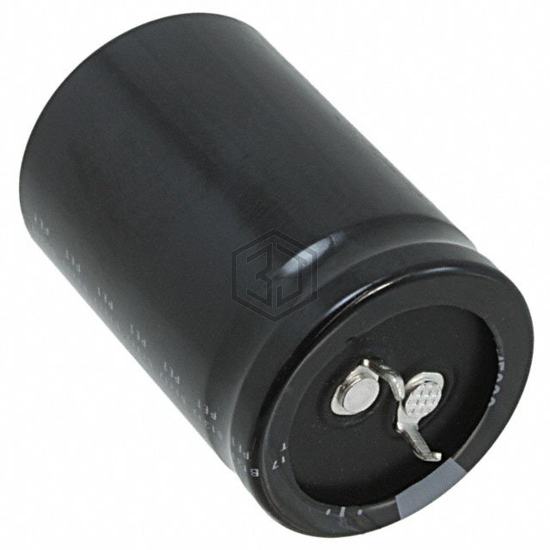

CAP ALUM 33000UF 20% 16V SNAP
LGU1C333MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.945 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX333M016K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 33000UF 20% 16V SNAP | 96% | View |
| MAL215835333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 16V SNAP | 91% | View |
| MAL216245333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 16V SNAP | 89% | View |
| 25MXC33000MEFCSN30X50 | Rubycon | CAP ALUM 33000UF 20% 25V SNAP | 75% | View |
| 381LX333M010J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 33000UF 20% 10V SNAP | 73% | View |
| EKMH100VSN333MR35U | United Chemi-Con | CAP ALUM 33000UF 20% 10V SNAP | 71% | View |
