Cornell Dubilier Electronics (CDE)
CAP ALUM 1800UF 20% 100V SNAP

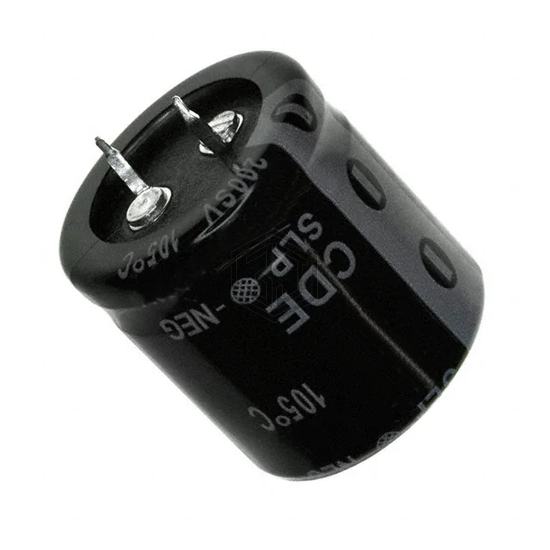

SLP182M100E3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1800UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 6,815
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 147mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.75 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP182M080A5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 80V SNAP | 83% | View |
| 35YXH1800MEFCGC18X20 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 72% | View |
| KY35VB182M12X40LL | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 72% | View |
| UPA1E182MHD1TO | Nichicon | CAP ALUM 1800UF 20% 25V RADIAL | 71% | View |
| MAL224630182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 69% | View |
| 25YXG1800MEFC16X20 | Rubycon | CAP ALUM 1800UF 20% 25V RADIAL | 68% | View |
