Cornell Dubilier Electronics (CDE)

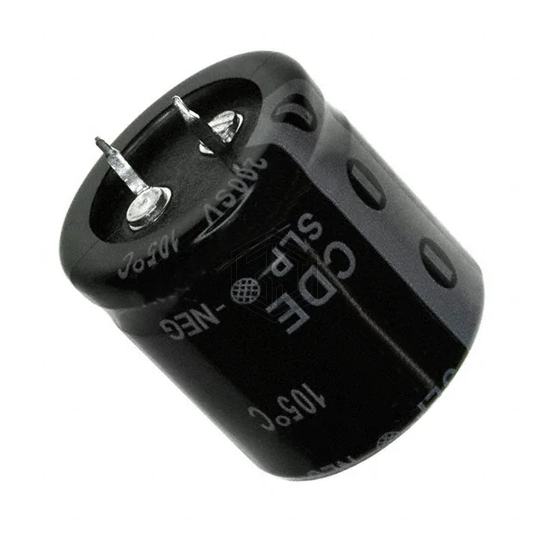

CAP ALUM 1500UF 20% 100V SNAP
SLP152M100E3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1500UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 1,730
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 177mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.61 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VSN152MA25S | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 96% | View |
| MAL205828152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 63V SNAP | 80% | View |
| EEU-TP1V152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 75% | View |
| LGG2C152MELB35 | Nichicon | CAP ALUM 1500UF 20% 160V SNAP | 73% | View |
| 601D158F063GP1 | Vishay Sprague | CAP ALUM 1500UF 63V AXIAL | 67% | View |
| MAL214831152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 50V RADIAL | 53% | View |
Submit your RFQ for SLP152M100E3P3 and get a quote within 24 hours.
