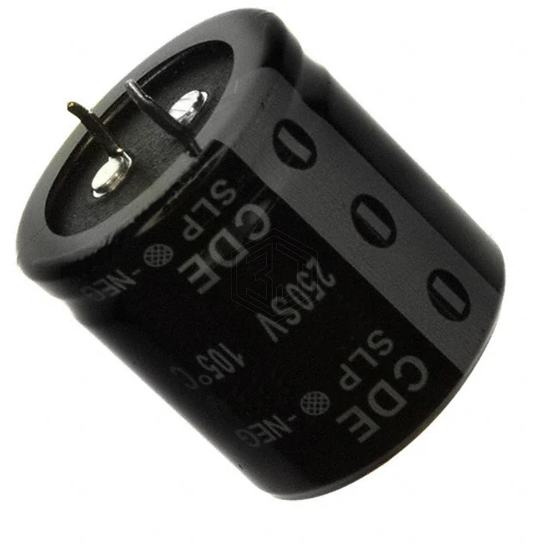

Cornell Dubilier Electronics (CDE)
CAP ALUM 1000UF 20% 220V SNAP
SLP102M220H5P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1000UF 20% 220V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can - Snap-In.
In Stock: 7,832
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | 199mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.44 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.59 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2Z102MELA | Nichicon | CAP ALUM 1000UF 20% 180V SNAP | 92% | View |
| PL2G102MND3570 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 80% | View |
| 400MXK1000MEFC35X50 | Rubycon | CAP ALUM 1000UF 20% 400V SNAP | 78% | View |
| EKMH401VNN102MA80U | United Chemi-Con | CAP ALUM 1000UF 20% 400V SNAP | 72% | View |
| ALC80F102DF250 | KEMET | CAP ALUM 1000UF 20% 250V SNAP | 70% | View |
| 108KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 35V RADIAL | 64% | View |
