CAP ALUM 1000UF 20% 180V SNAP

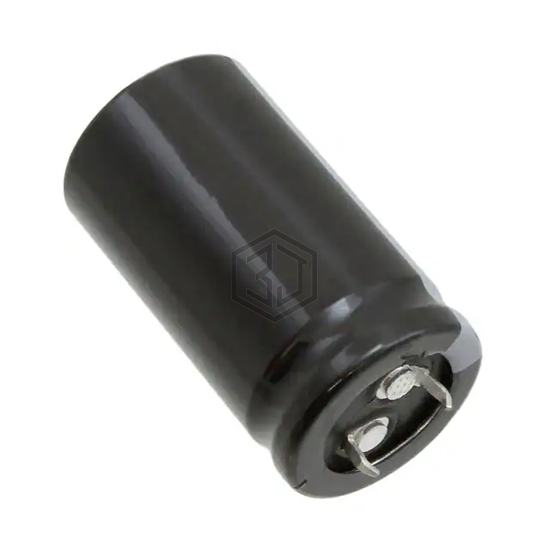

LGU2Z102MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 7,351
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43544F2108M007 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 250V SNAP | 77% | View |
| 108KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 35V RADIAL | 66% | View |
| ALC80F102DF250 | KEMET | CAP ALUM 1000UF 20% 250V SNAP | 62% | View |
| 30D108M063GK2AE3 | Vishay Sprague | CAP ALUM 1000UF 20% 63V AXIAL | 57% | View |
| EK1E102MNN1020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 56% | View |
| MAL213661102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 53% | View |
