Cornell Dubilier Electronics (CDE)

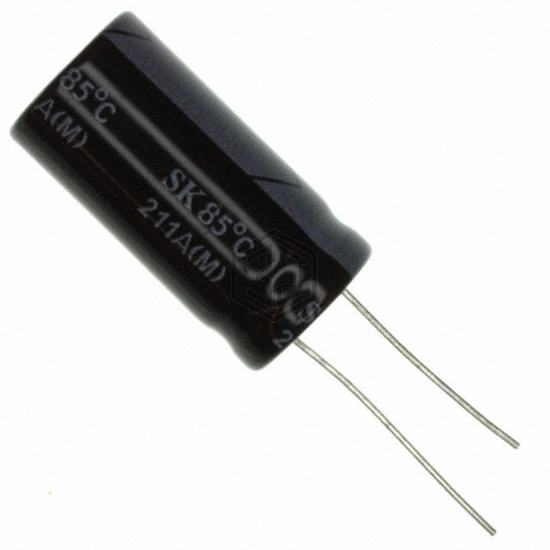

CAP ALUM 220UF 20% 160V RADIAL
SK221M160ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 220UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 1,246
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 900mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 714 mA @ 1 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.496" (38.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGJ2C221MELZ | Nichicon | CAP ALUM 220UF 20% 160V SNAP | 76% | View |
| 25ZLG220MEFCTA8X11.5 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 70% | View |
| 860040574006 | Würth Elektronik | CAP ALUM 220UF 20% 35V RADIAL | 62% | View |
| MAL215056221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 60% | View |
| B43505A2227M80 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 250V SNAP | 60% | View |
| MAL219390121E3 | Vishay Beyschlag/Draloric/BC Components | 220UF 475V/570V 35X30MM 105C/60C | 56% | View |
