Cornell Dubilier Electronics (CDE)

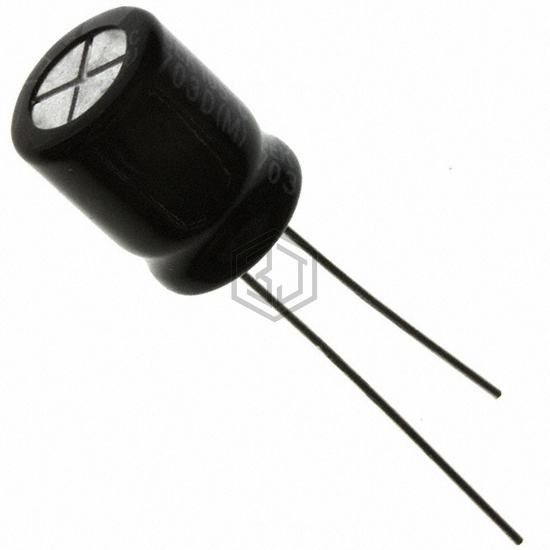

CAP ALUM 4.7UF 20% 350V RADIAL
SEK4R7M350ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4.7UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,767
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 56.47Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 99 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG351ELL4R7MJ16S | United Chemi-Con | CAP ALUM 4.7UF 20% 350V RADIAL | 92% | View |
| UVC2G4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 400V RADIAL | 89% | View |
| EKMQ401ETD4R7MJC5S | United Chemi-Con | CAP ALUM 4.7UF 20% 400V RADIAL | 88% | View |
| ESE475M250AG3DA | KEMET | CAP ALUM RAD 105C | 71% | View |
| UPW1V4R7MDH | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 64% | View |
| 100YXF4.7MEFCTA5X11 | Rubycon | CAP ALUM 4.7UF 20% 100V RADIAL | 52% | View |
Submit your RFQ for SEK4R7M350ST and get a quote within 24 hours.
