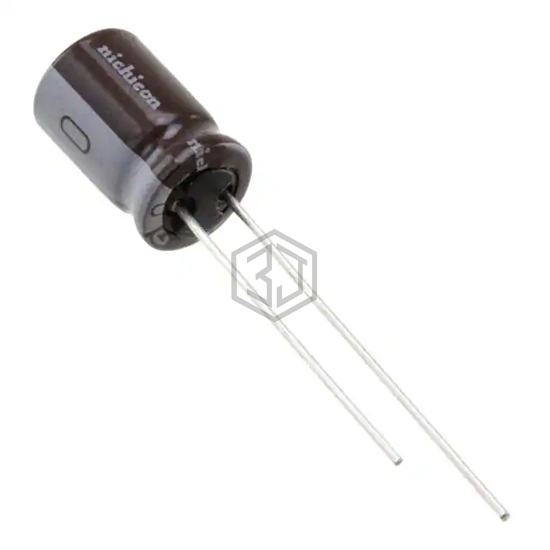

CAP ALUM 4.7UF 20% 400V RADIAL
UVC2G4R7MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 18,094
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 105 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400PX4.7MEFC8X11.5 | Rubycon | CAP ALUM 4.7UF 20% 400V RADIAL | 100% | View |
| UAS2G4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 400V RADIAL | 94% | View |
| EKMQ401ETD4R7MJC5S | United Chemi-Con | CAP ALUM 4.7UF 20% 400V RADIAL | 88% | View |
| EKMG351ELL4R7MJ16S | United Chemi-Con | CAP ALUM 4.7UF 20% 350V RADIAL | 84% | View |
| 200LEX4.7MEFC6.3X11 | Rubycon | CAP ALUM 4.7UF 20% 200V RADIAL | 69% | View |
| ELE-500ELL4R7ME11D | United Chemi-Con | CAP ALUM 4.7UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for UVC2G4R7MPD and get a quote within 24 hours.
