Cornell Dubilier Electronics (CDE)
CAP ALUM 82UF 20% 450V SNAP

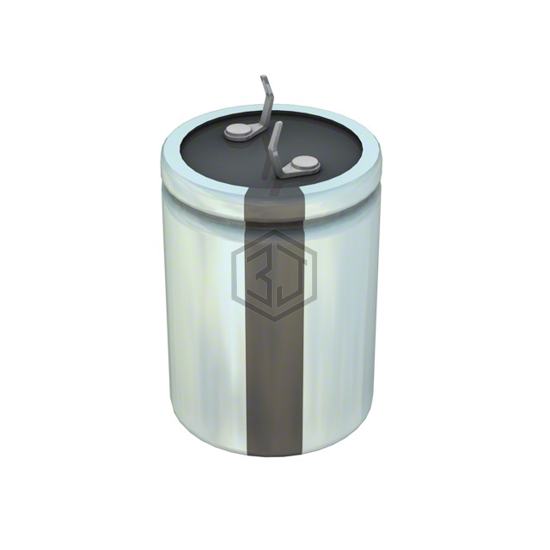

LPX820M450A3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 82UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,582
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 2.426Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450QXW82MEFC14.5X35 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 95% | View |
| 420LXW82MEFR12.5X40 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 83% | View |
| UCS2G820MHD | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 80% | View |
| UCY2E820MHD9TO | Nichicon | CAP ALUM 82UF 20% 250V RADIAL | 70% | View |
| EKXJ251ELL820MJ45S | United Chemi-Con | CAP ALUM 82UF 20% 250V RADIAL | 65% | View |
| 860080674008 | Würth Elektronik | CAP ALUM 82UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for LPX820M450A3P3 and get a quote within 24 hours.
