Cornell Dubilier Electronics (CDE)
CAP ALUM 1500UF 20% 200V SNAP

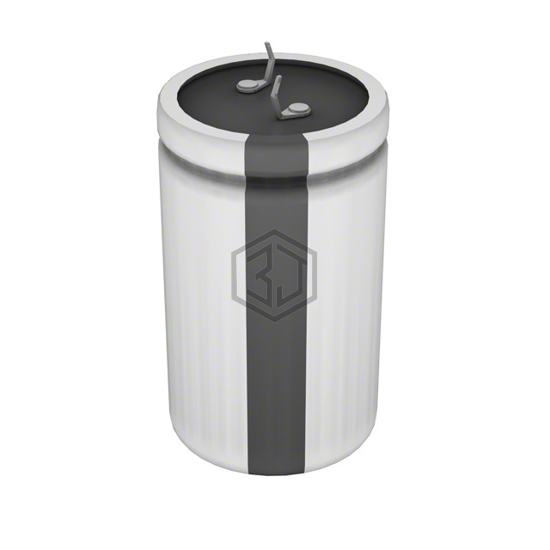

LPX152M200E9P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1500UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 5,105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 133mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.4 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ152M200A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 200V SNAP | 100% | View |
| B43601E2158M62 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 89% | View |
| LKX2E152MESC50 | Nichicon | CAP ALUM 1500UF 20% 250V SNAP | 78% | View |
| MAL209575152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 350V RADIAL | 61% | View |
| EEU-FM1E152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 60% | View |
| B43510B0158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 420V SNAP | 57% | View |
