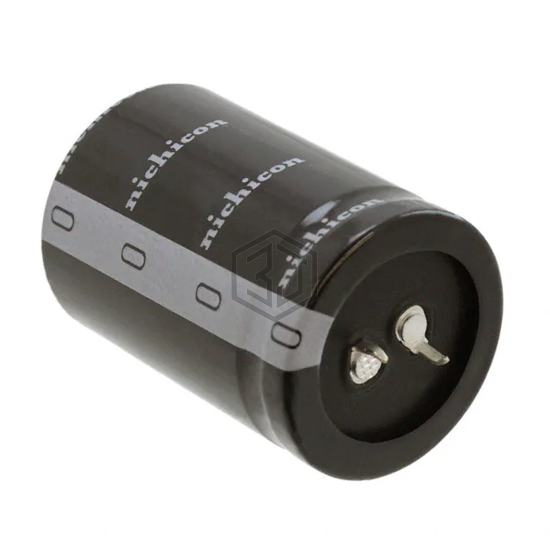

CAP ALUM 1500UF 20% 250V SNAP
LKX2E152MESC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 5,833
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.75 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FM1E152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 75% | View |
| EKZH350ELL152ML20S | United Chemi-Con | CAP ALUM 1500UF 20% 35V RADIAL | 70% | View |
| MAL215090187E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 58% | View |
| MAL214661152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 50V RADIAL | 53% | View |
| EGXF350ELL152MK25S | United Chemi-Con | CAP ALUM 1500UF 20% 35V RAD TH | 52% | View |
| EKY-250ETE152MK25S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 52% | View |
Submit your RFQ for LKX2E152MESC50 and get a quote within 24 hours.
