Cornell Dubilier Electronics (CDE)

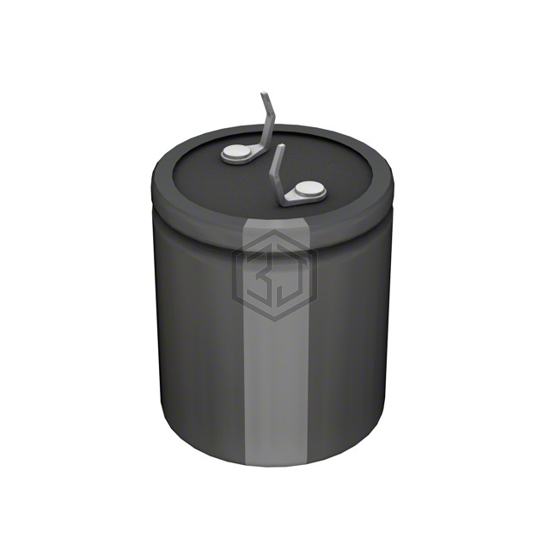

CAP ALUM 8200UF 20% 10V SNAP
LPW822M1AN25V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 8200UF 20% 10V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - Snap-In.
In Stock: 4,074
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 101mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.39 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.629 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW822M1AN25V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKYB100ELL822MM25S | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 87% | View |
| UPA0J822MHD6 | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 84% | View |
| EKMH350VSN822MQ40U | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 77% | View |
| 860010380028 | Würth Elektronik | CAP ALUM 8200UF 20% 16V RADIAL | 73% | View |
| 381LX822M035J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 35V SNAP | 69% | View |
| UBY1E822MHL | Nichicon | CAP ALUM 8200UF 20% 25V RADIAL | 67% | View |
Submit your RFQ for LPW822M1AN25V-W and get a quote within 24 hours.
