Cornell Dubilier Electronics (CDE)

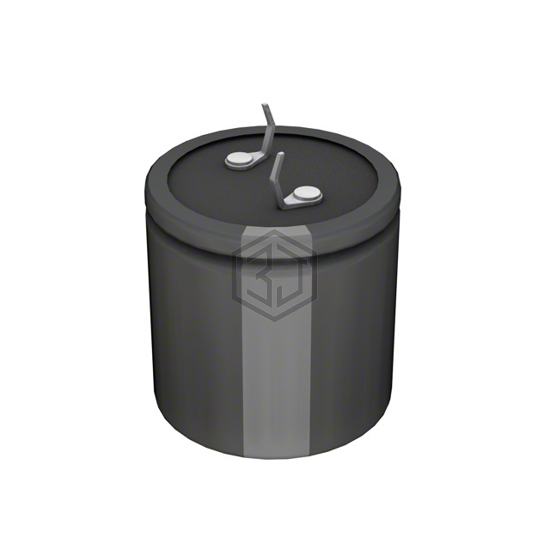

CAP ALUM 4700UF 20% 25V SNAP
LPW472M1EO25V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4700UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 5,973
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 159mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.31 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.541 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW472M1EO25V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SMG35VB472M20CLL | United Chemi-Con | CAP ALUM 4700UF 20% 35V RADIAL | 86% | View |
| 16RX304700MGC16X35.5 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 80% | View |
| MAL225620472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 35V SNAP | 78% | View |
| MAL205627472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 40V SNAP | 71% | View |
| EEU-HD1C472B | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 66% | View |
| SLP472M080H5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 80V SNAP | 58% | View |
Submit your RFQ for LPW472M1EO25V-W and get a quote within 24 hours.
