Cornell Dubilier Electronics (CDE)
CAP ALUM 4700UF 20% 80V SNAP

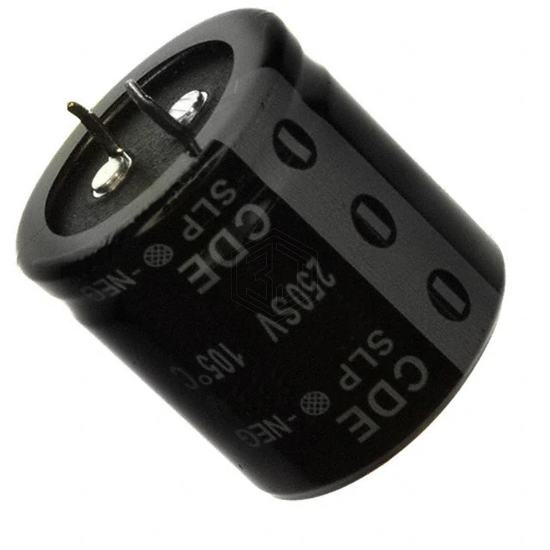

SLP472M080H5P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 5,059
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 71mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.23 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205858472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 63V SNAP | 88% | View |
| 381LX472M100A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 100V SNAP | 83% | View |
| 10ZLJ4700M12.5X30 | Rubycon | CAP ALUM 4700UF 20% 10V RADIAL | 69% | View |
| EEU-FS1C472SB | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 67% | View |
| EKMH500VSN472MP45U | United Chemi-Con | CAP ALUM 4700UF 20% 50V SNAP | 66% | View |
| SLP472M035A5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 35V SNAP | 65% | View |
Submit your RFQ for SLP472M080H5P3 and get a quote within 24 hours.
