Cornell Dubilier Electronics (CDE)
CAP ALUM 3300UF 20% 63V SNAP

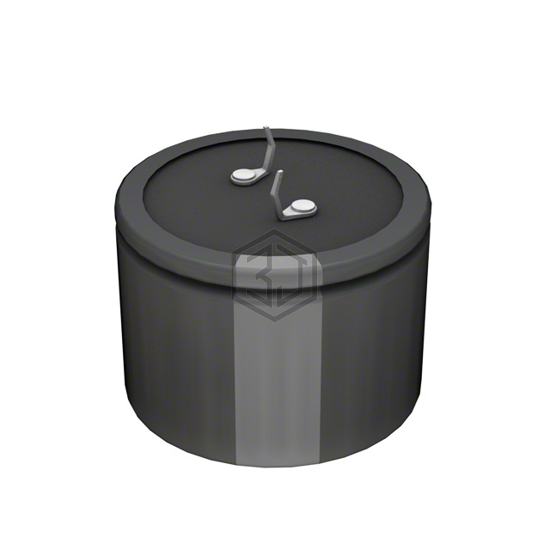

LPW332M1JQ25V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 3,895
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 151mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.312 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW332M1JQ25V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41505A338M7 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 80V SNAP | 85% | View |
| LKG1K332MESCBK | Nichicon | CAP ALUM 3300UF 20% 80V SNAP | 79% | View |
| MAL225066332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 70% | View |
| B41605A0338M009 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 55V RADIAL | 70% | View |
| LKG1V332MESABK | Nichicon | CAP ALUM 3300UF 20% 35V SNAP | 68% | View |
| UPA1C332MHD6 | Nichicon | CAP ALUM 3300UF 20% 16V RADIAL | 63% | View |
Submit your RFQ for LPW332M1JQ25V-W and get a quote within 24 hours.
