CAP ALUM 3300UF 20% 35V SNAP

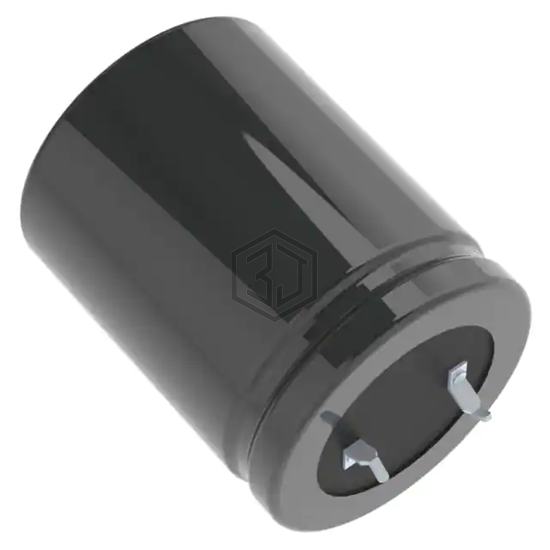

LKG1V332MESABK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 6,075
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225066332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 86% | View |
| 338KBM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 25V RADIAL | 86% | View |
| EKMH630VSN332MA25S | United Chemi-Con | CAP ALUM 3300UF 20% 63V SNAP | 74% | View |
| B41605A0338M009 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 55V RADIAL | 71% | View |
| UPA1C332MHD6 | Nichicon | CAP ALUM 3300UF 20% 16V RADIAL | 68% | View |
| MAL224635332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 57% | View |
Submit your RFQ for LKG1V332MESABK and get a quote within 24 hours.
