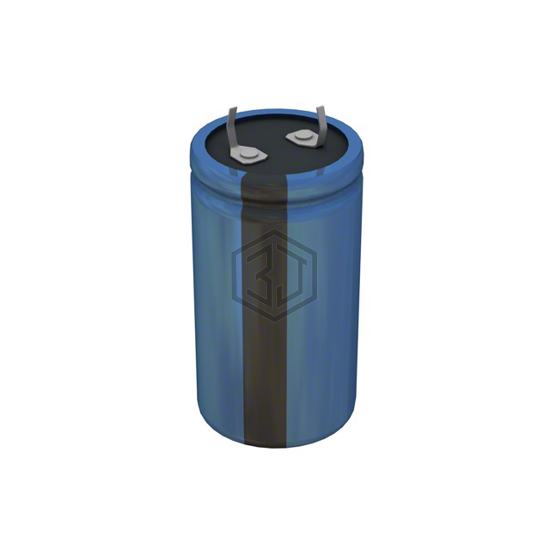

Cornell Dubilier Electronics (CDE)
CAP ALUM 2200UF 20% 100V SNAP
LPW222M2AO45V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 9,524
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 188mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.77 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.324 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW222M2AO45V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKSH2222MESA | Nichicon | CAP ALUM 2200UF 20% 71V SNAP | 79% | View |
| EKMH800VSN222MQ35S | United Chemi-Con | CAP ALUM 2200UF 20% 80V SNAP | 78% | View |
| 25ZLJ2200MGC16X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 75% | View |
| 228KBM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 35V RADIAL | 65% | View |
| UPA1E222MHD6 | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 62% | View |
| B43501A1228M007 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 160V SNAP | 57% | View |
Submit your RFQ for LPW222M2AO45V-W and get a quote within 24 hours.
