Cornell Dubilier Electronics (CDE)
CAP ALUM 3300UF 20% 25V SNAP

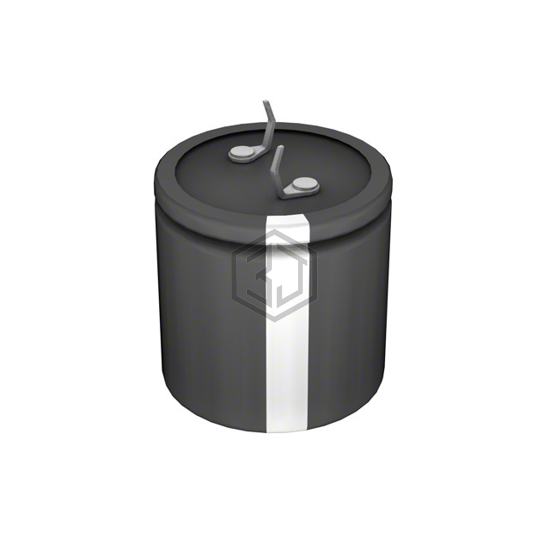

LP332M025C1P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 4,849
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.143 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.2573 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205876332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V SNAP | 78% | View |
| MAL214660332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 68% | View |
| UPA1E332MHD1TN | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 64% | View |
| MAL215050332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 64% | View |
| 10YXG3300MEFC12.5X25 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 58% | View |
| 338LMB063M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 63V SNAP | 56% | View |
