Cornell Dubilier Electronics (CDE)

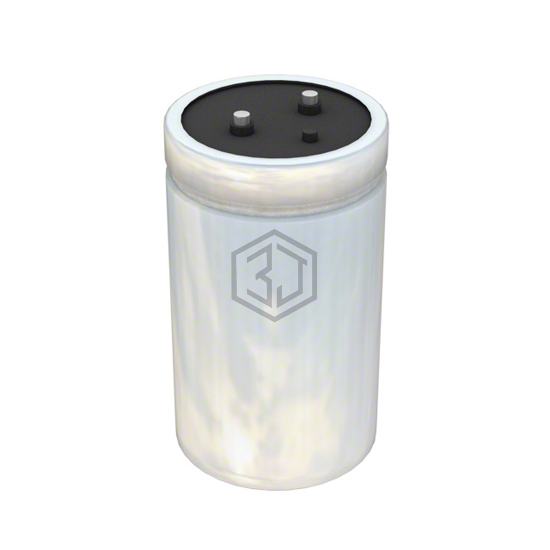

CAP ALUM 5000UF 350V SCREW
HES502G350X5C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 5000UF 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,060
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5000 µF |
| Tolerance | 0%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 14.883 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.125" (130.18mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXU451LGC502MEA5U | Chemi-Con | SCREW TERMINAL CAPCITOR | 84% | View |
| 550C502T450FF2D | Cornell Dubilier Electronics (CDE) | CAP ALUM 5000UF 450V SCREW | 82% | View |
| E32D251CJN482MC79U | Chemi-Con | CAP ALUM 4.8MF 20% 250V SCREW CH | 75% | View |
| CGR492U030U2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 4900UF 30V SCREW | 69% | View |
| E32D750HPN502TDB7U | United Chemi-Con | CAP ALUM 5000UF 75V SCREW | 56% | View |
| E32D630LPN492WAA5U | United Chemi-Con | CAP ALUM 4900UF 63V SCREW | 54% | View |
