Cornell Dubilier Electronics (CDE)

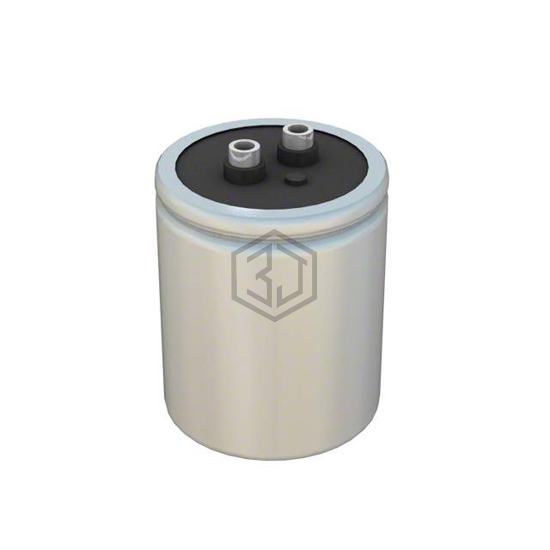

CAP ALUM 4900UF 30V SCREW
CGR492U030U2C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4900UF 30V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 30 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,759
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4900 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 30 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.845 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E74D350LPN482MA41N | United Chemi-Con | CAP ALUM 4800UF 20% 35V SCREW | 88% | View |
| E32D400HPN492UAE3U | Chemi-Con | CAP ALUM 4.9MF 40V SCREW CHAS MT | 82% | View |
| HES502G350X5C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5000UF 350V SCREW | 69% | View |
| 550C502T450FF2D | Cornell Dubilier Electronics (CDE) | CAP ALUM 5000UF 450V SCREW | 68% | View |
| E32D630LPN492WAA5U | United Chemi-Con | CAP ALUM 4900UF 63V SCREW | 56% | View |
| E32D231CDS482MDA5U | United Chemi-Con | CAP ALUM 4800UF 20% 230V SCREW | 54% | View |
