Cornell Dubilier Electronics (CDE)

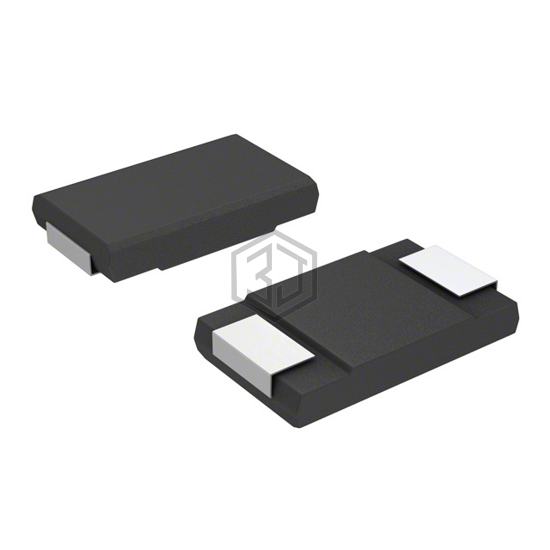

CAP ALUM POLY 56UF 20% 2.5V SMD
ESRL560M0EB is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY 56UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case 2917 (7343 Metric).
In Stock: 8,844
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
ESRL560M0EB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESRL560M0ER | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 56UF 20% 2.5V SMD | 100% | View |
| ESRL680M02B | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 68UF 20% 2V SMD | 81% | View |
| ESRD560M04R | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 56UF 20% 4V SMD | 66% | View |
| ESRD560M04B | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 56UF 20% 4V SMD | 66% | View |
| 566XMPL020MG19 | Cornell Dubilier Knowles | CAP ALUM POLY 56UF 20% 20V SMD | 61% | View |
| 4SXE68M1.9X7.3 | Rubycon | CAP ALUM POLY 68UF 20% 4V SMD | 54% | View |
Submit your RFQ for ESRL560M0EB and get a quote within 24 hours.
