Cornell Dubilier Electronics (CDE)

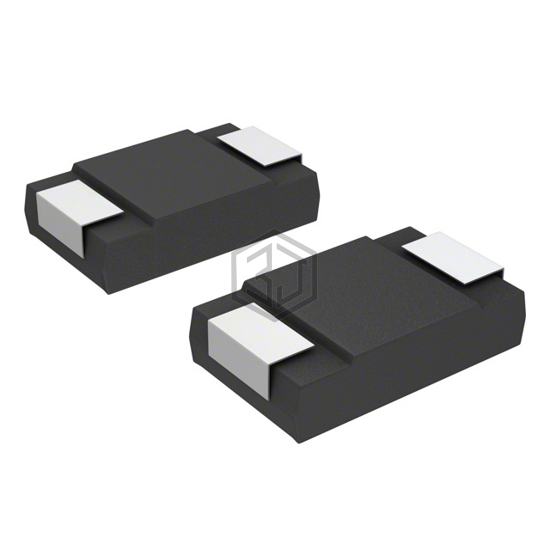

CAP ALUM POLY 56UF 20% 4V SMD
ESRD560M04B is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY 56UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case 2917 (7343 Metric).
In Stock: 8,497
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
ESRD560M04B is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESRD560M04R | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 56UF 20% 4V SMD | 100% | View |
| A700V566M006ATE028 | KEMET | CAP ALUM POLY 56UF 20% 6.3V SMD | 74% | View |
| A700V566M006ATE025 | KEMET | CAP ALUM POLY 56UF 20% 6.3V SMD | 71% | View |
| A700V566M006ATE018 | KEMET | CAP ALUM POLY 56UF 20% 6.3V SMD | 71% | View |
| ESRL560M0EB | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 56UF 20% 2.5V SMD | 66% | View |
| A700D566M010ATE015 | KEMET | CAP ALUM POLY 56UF 20% 10V SMD | 55% | View |
Submit your RFQ for ESRD560M04B and get a quote within 24 hours.
