Cornell Dubilier Electronics (CDE)

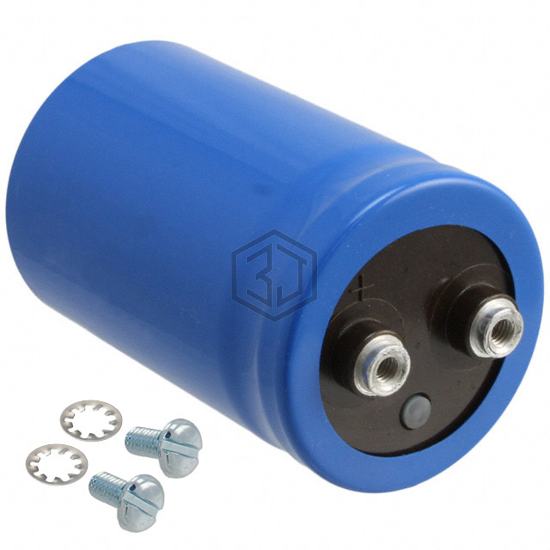

CAP ALUM 220000UF 7.5V SCREW
CGS224U7R5U4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 220000UF 7.5V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 7.5 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 7.5 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.03 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1A224MSE | Nichicon | CAP ALUM 220000UF 20% 10V SCREW | 88% | View |
| LNR1A224MSEB | Nichicon | CAP ALUM 220000UF 20% 10V SCREW | 88% | View |
| LNR1C224MSE | Nichicon | CAP ALUM 220000UF 20% 16V SCREW | 74% | View |
| LNR1V224MSEN | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 70% | View |
| LNR1V224MSEB | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 70% | View |
| MAL210166224E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220000UF 20% 25V SCREW | 54% | View |
Submit your RFQ for CGS224U7R5U4C and get a quote within 24 hours.
