Cornell Dubilier Electronics (CDE)

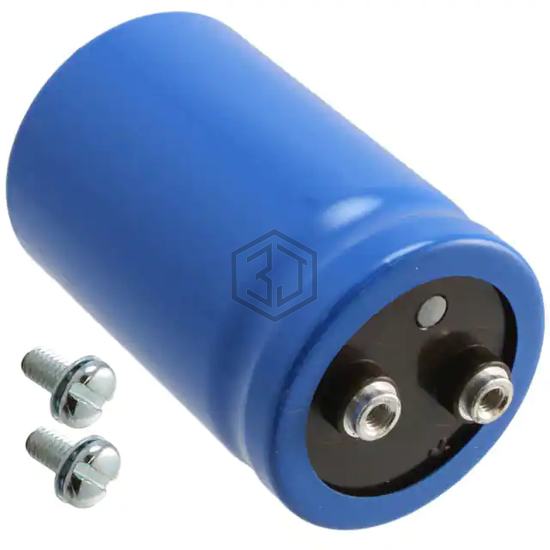

CAP ALUM 22000UF 25V SCREW
CGS223U025V2C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22000UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,153
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 43mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.76 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D250LPN223TA79N | United Chemi-Con | CAP ALUM 22000UF 25V SCREW | 100% | View |
| MAL210116223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SCREW | 85% | View |
| LNT1H223MSE | Nichicon | CAP ALUM 22000UF 20% 50V SCREW | 73% | View |
| LNT1J223MSE | Nichicon | CAP ALUM 22000UF 20% 63V SCREW | 68% | View |
| E32D350HPN223MA67U | Chemi-Con | CAP ALUM 22MF 20% 35V SCREW CHAS | 65% | View |
| E36D630HLN223MC67U | Chemi-Con | CAP ALUM 22MF 20% 63V SCREW CHAS | 57% | View |
Submit your RFQ for CGS223U025V2C and get a quote within 24 hours.
