Cornell Dubilier Electronics (CDE)

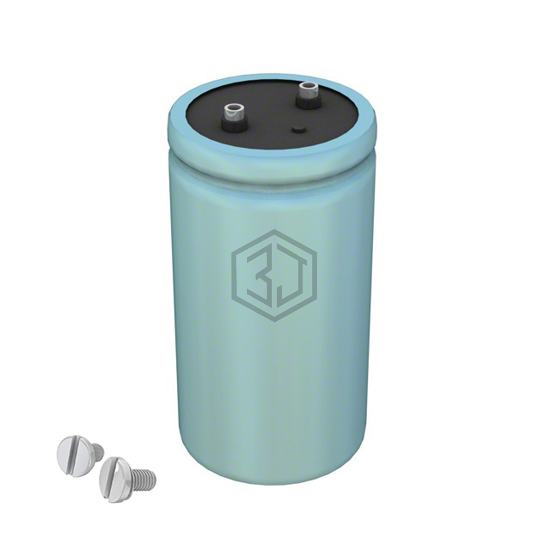

CAP ALUM 2100UF 500V SCREW
CGH212T500W4L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2100UF 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,648
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2100 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 121mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36L501CLN212ME79U | Chemi-Con | CAP ALUM 2.1MF 20% 500V SCREW CH | 100% | View |
| E36F501CGN212ME79U | Chemi-Con | CAP ALUM 2.1MF 20% 500V SCREW CH | 100% | View |
| E36D401HPN212TED0U | United Chemi-Con | CAP ALUM 2100UF 400V SCREW | 86% | View |
| MLP212M080EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 20% 80V FLATPACK | 71% | View |
| HES212G400X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 400V SCREW | 69% | View |
| CGS212U150R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 150V SCREW | 68% | View |
