Cornell Dubilier Electronics (CDE)

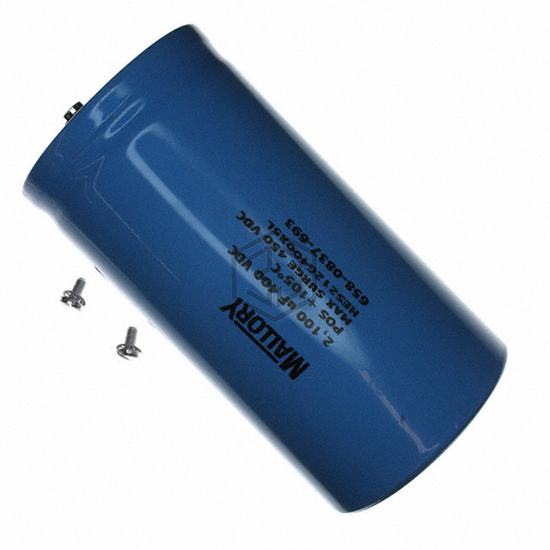

CAP ALUM 2100UF 400V SCREW
HES212G400X5L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2100UF 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,611
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2100 µF |
| Tolerance | 0%, +50% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 45mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.685 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLSG212M060EA0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 20% 60V FLATPACK | 69% | View |
| MLS212M060EA1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 20% 60V FLATPACK | 69% | View |
| MLS212M060EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 20% 60V FLATPACK | 69% | View |
| HVMLS212M060EA1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 20% 60V FLATPACK | 69% | View |
| HVMLS212M060EA0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 20% 60V FLATPACK | 69% | View |
| HVMLS212M060EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 2100UF 20% 60V FLATPACK | 69% | View |
Submit your RFQ for HES212G400X5L and get a quote within 24 hours.
