Cornell Dubilier Electronics (CDE)

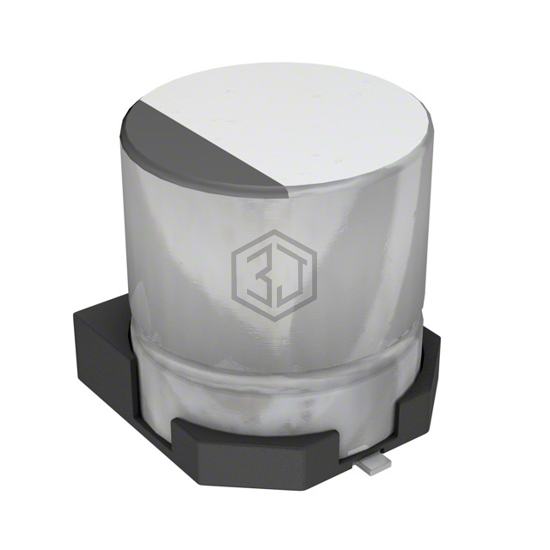

CAP ALUM 47UF 20% 10V SMD
AVS476M10C12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6,930
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 10.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 43 mA @ 120 Hz |
| Ripple Current @ High Frequency | 73.1 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS476M10C12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUQ1A470MCL1GB | Nichicon | CAP ALUM 47UF 20% 10V SMD | 98% | View |
| UUA1A470MCL1GS | Nichicon | CAP ALUM 47UF 20% 10V SMD | 96% | View |
| UCJ1C470MCL1GS | Nichicon | CAP ALUM 47UF 20% 16V SMD | 77% | View |
| EEE-HP0J470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 6.3V SMD | 76% | View |
| AVES476M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 25V SMD | 68% | View |
| EEE-TG1E470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V SMD | 62% | View |
Submit your RFQ for AVS476M10C12B-F and get a quote within 24 hours.
