Cornell Dubilier Electronics (CDE)

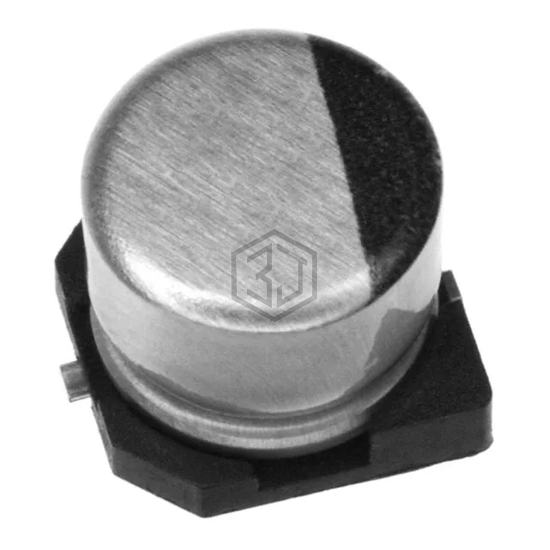

CAP ALUM 47UF 20% 25V SMD
AVES476M25D16T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,607
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 5.63Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 84 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1E470MCL1GB | Nichicon | CAP ALUM 47UF 20% 25V SMD | 94% | View |
| 35SGV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 35V SMD | 78% | View |
| UUA1A470MCL1GS | Nichicon | CAP ALUM 47UF 20% 10V SMD | 72% | View |
| UCM1E470MCL1GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 58% | View |
| AEA1010470M080R | KYOCERA AVX | ALUMINUM CAP | 51% | View |
| EEE-FPJ470UAR | Panasonic Electronic Components | CAP ALUM 47UF 20% 6.3V SMD | 50% | View |
