Cornell Dubilier Electronics (CDE)

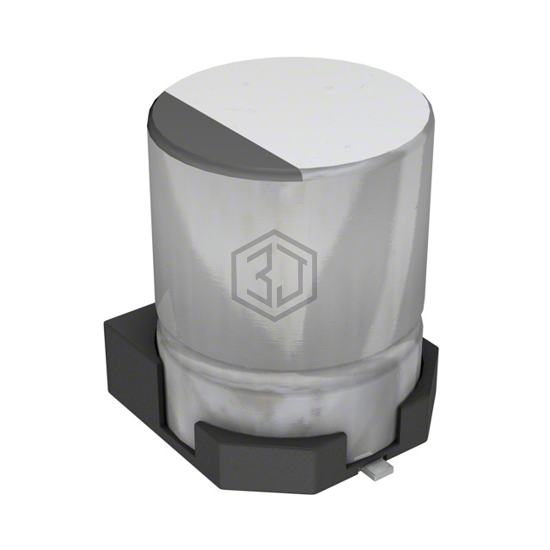

CAP ALUM 4.7UF 20% 100V SMD
AVS475M2AF24B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4.7UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 4,844
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 63.5Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 136 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS475M2AF24B-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA475M2AF24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 100V SMD | 77% | View |
| MALSECA00AD147LARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 100V SMD | 73% | View |
| AFK475M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 35V SMD | 65% | View |
| EEV475M035S9BAA | KEMET | CAP ALUM 4.7UF 20% 35V SMD | 63% | View |
| AFK475M50B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 50V SMD | 53% | View |
| AVEZ475M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 35V SMD | 51% | View |
Submit your RFQ for AVS475M2AF24B-F and get a quote within 24 hours.
