Cornell Dubilier Electronics (CDE)

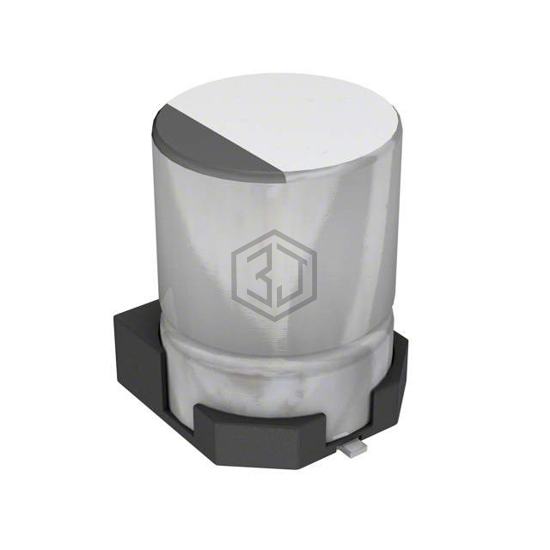

CAP ALUM 4.7UF 20% 25V SMD
AVS475M25B12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4.7UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 7,222
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 49.4Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 22 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS475M25B12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDK475M025A9BAA | KEMET | CAP ALUM 4.7UF 20% 25V SMD | 93% | View |
| EEE-HA1V4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 35V SMD | 90% | View |
| AHD475M25B12B | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 25V SMD | 82% | View |
| 35NSEV4.7M5X5.5 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 77% | View |
| EMVL350ADA4R7MD60G | United Chemi-Con | CAP ALUM 4.7UF 20% 35V SMD | 68% | View |
| UT475M100HDHTA | Aillen | CAP. ALUM 4.7UF 100V 20% SMD | 67% | View |
Submit your RFQ for AVS475M25B12B-F and get a quote within 24 hours.
