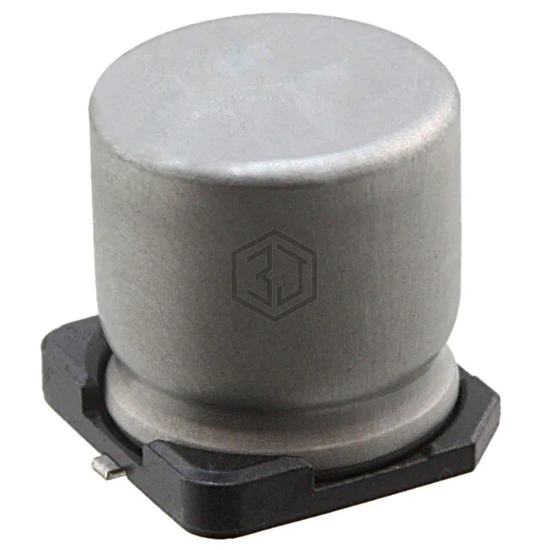

CAP ALUM 4.7UF 20% 35V SMD
35NSEV4.7M5X5.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,127
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUP1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 100% | View |
| EMVK350ADA4R7MD55G | United Chemi-Con | CAP ALUM 4.7UF 20% 35V SMD | 94% | View |
| EMVL350ADA4R7MD60G | United Chemi-Con | CAP ALUM 4.7UF 20% 35V SMD | 91% | View |
| EEE-HA1V4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 35V SMD | 87% | View |
| EDK475M025A9BAA | KEMET | CAP ALUM 4.7UF 20% 25V SMD | 85% | View |
| 50TZV4R7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 50V SMD | 70% | View |
Submit your RFQ for 35NSEV4.7M5X5.5 and get a quote within 24 hours.
