Cornell Dubilier Electronics (CDE)
CAP ALUM 220UF 20% 16V SMD

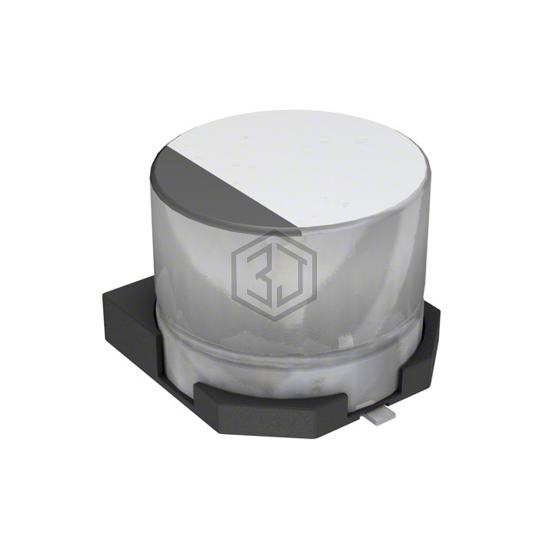

AVS227M16E16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,022
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 1.5Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS227M16E16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZ227M016HEJTA | Aillen | CAP ALUM 220UF 20% 16V SMD | 95% | View |
| 865080345012 | Würth Elektronik | CAP ALUM 220UF 20% 16V SMD | 92% | View |
| EEE-TP1A221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 77% | View |
| EEV-TG2A221M | Panasonic Electronic Components | CAP ALUM 220UF 20% 100V SMD | 73% | View |
| ATB227M6R3 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 6.3V SMD | 66% | View |
| EMZA250ADA221MHA0G | United Chemi-Con | CAP ALUM 220UF 20% 25V SMD | 63% | View |
Submit your RFQ for AVS227M16E16B-F and get a quote within 24 hours.
