Cornell Dubilier / Illinois Capacitor

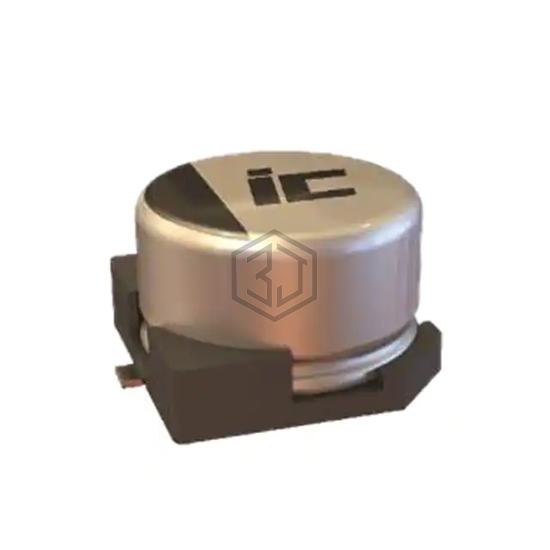

CAP ALUM 220UF 20% 6.3V SMD
ATB227M6R3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,981
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 720mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 168 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.280" W (6.60mm x 7.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1A221XP | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 80% | View |
| 865080345012 | Würth Elektronik | CAP ALUM 220UF 20% 16V SMD | 75% | View |
| EXV227M016A9MAA | KEMET | CAP ALUM 220UF 20% 16V SMD | 59% | View |
| VUJ221M1CTR-1010S | SURGE | CAP ALUM 220UF 20% 16V SMD | 56% | View |
| EMVY350ADA221MJA0G | United Chemi-Con | CAP ALUM 220UF 20% 35V SMD | 56% | View |
| UUA1E221MNL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 50% | View |
Submit your RFQ for ATB227M6R3 and get a quote within 24 hours.
