Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 35V SMD

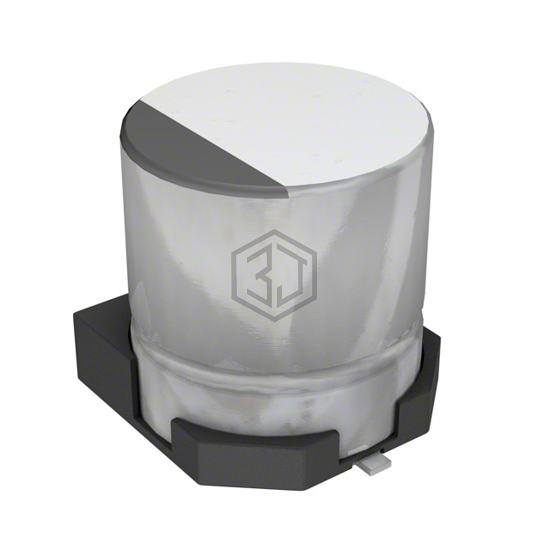

AVS226M35C12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,408
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 12.1Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | 61.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS226M35C12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HB1V220AP | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V SMD | 80% | View |
| EEV226M050A9GAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 79% | View |
| UUQ1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 75% | View |
| UWX1H220MCR1GB | Nichicon | CAP ALUM 22UF 20% 50V SMD | 75% | View |
| EEE-HP1E220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 69% | View |
| EEE-1AA220WAR | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V SMD | 67% | View |
Submit your RFQ for AVS226M35C12B-F and get a quote within 24 hours.
