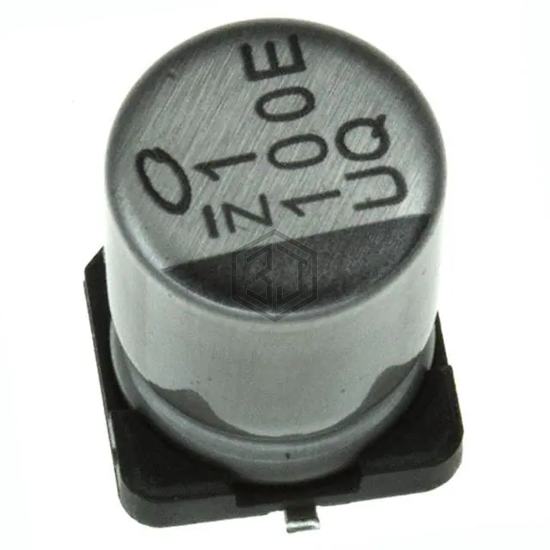

CAP ALUM 22UF 20% 50V SMD
UUQ1H220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,114
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 51 mA @ 120 Hz |
| Ripple Current @ High Frequency | 76.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV226M050A9GAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 97% | View |
| VEU220M1HTR-0607S | Surge | CAP ALUM 50V POLAR | 95% | View |
| EEE-FN1J220XV | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 72% | View |
| EEE-HP1E220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 72% | View |
| 16SJV22M5X6.1 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 54% | View |
| EDH226M100A9MAA | KEMET | CAP ALUM 22UF 20% 100V SMD | 51% | View |
Submit your RFQ for UUQ1H220MCL1GS and get a quote within 24 hours.
