Cornell Dubilier Electronics (CDE)

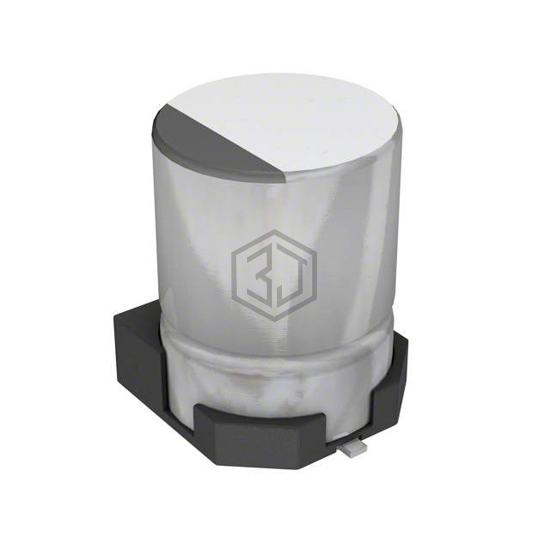

CAP ALUM 22UF 20% 16V SMD
AVS226M16B12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,631
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 19.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 47.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS226M16B12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY100ADA220MD60G | United Chemi-Con | CAP ALUM 22UF 20% 10V SMD | 70% | View |
| EDK226M050S9GAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 69% | View |
| UUB1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 67% | View |
| UUQ0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 64% | View |
| 865090543005 | Würth Elektronik | CAP ALUM 22UF 20% 35V SMD | 58% | View |
| UZG0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 57% | View |
Submit your RFQ for AVS226M16B12B-F and get a quote within 24 hours.
